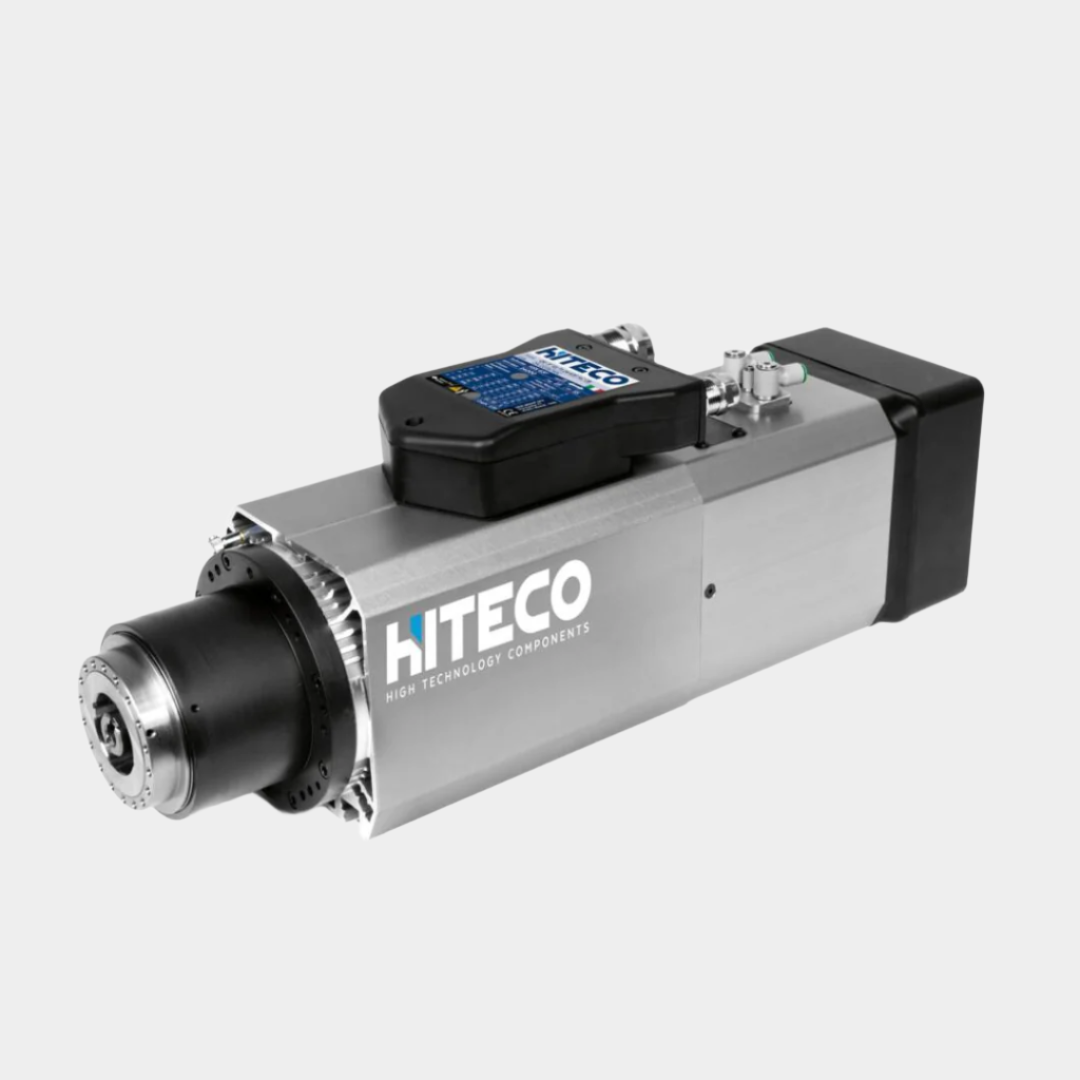

HITECO Spindle

QE-1F 12/12 24

Name: QE-1F 12/12 24
Brand: HITECO Spindle
Price: 10000.00 GBP
Availability: InStock

£10,000.00 GBP

Sale Sold out

Taxes included.

Quantity

– Suitable for machining wood, aluminium and advanced materials
– Possibility of drilling, flowdrill and threading
– Liquid cooling available for intensive uses
– Optional encoder available for tapping and precision machining operations

ADVANTAGES

iM SMART SENSOR

Speed, vibrations and temperature directly linked to your PC (link)

SIMPLE MAINTENANCE

Simple maintenance with spindle kit management

HIGH TORQUE

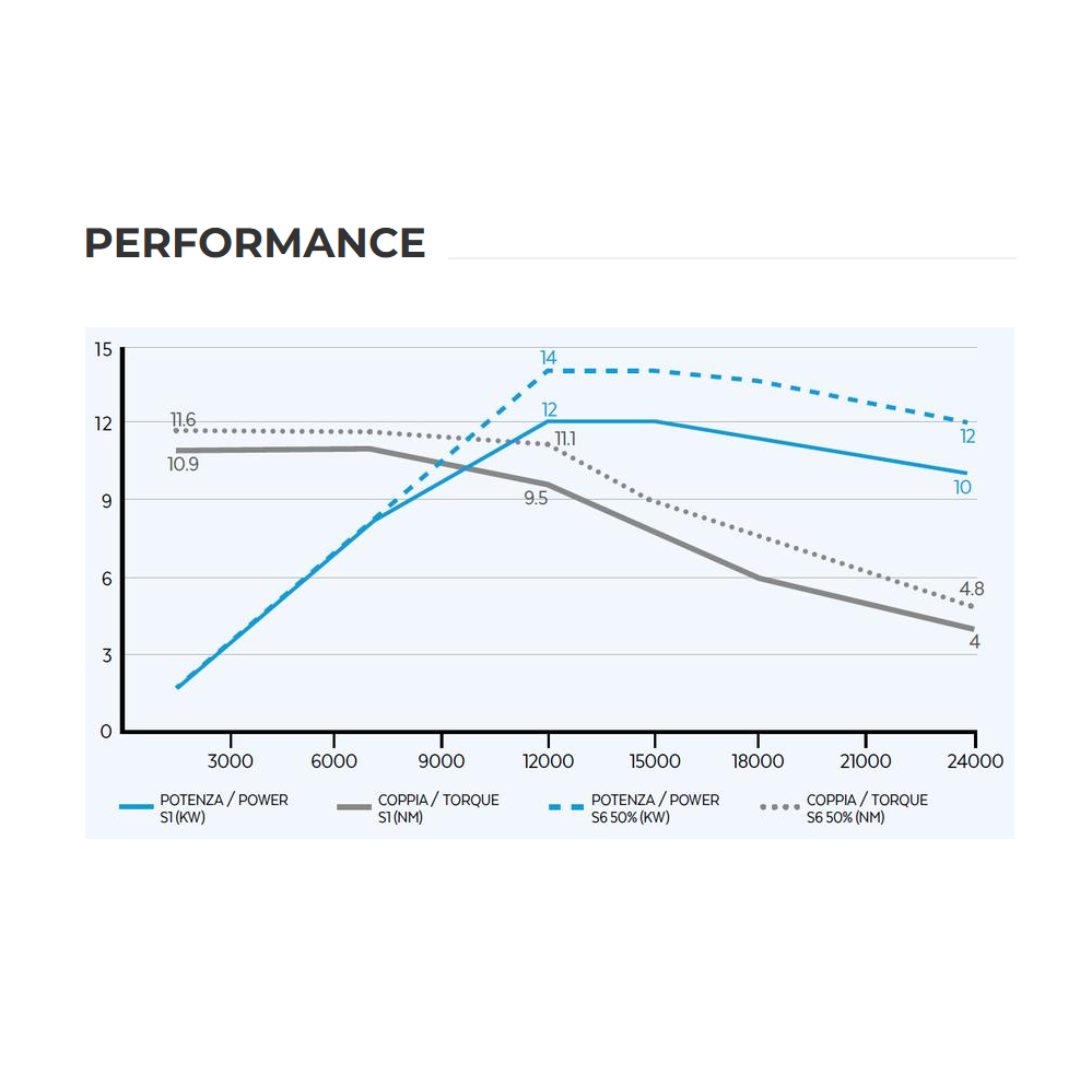

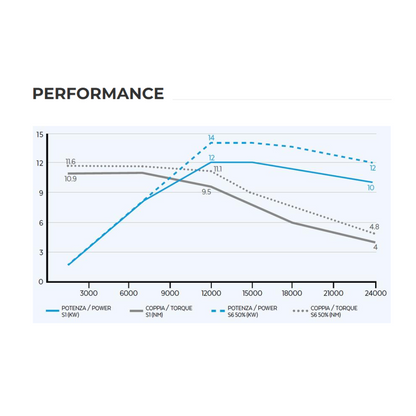

Maximum power from 6000 RPM in the air and liquid cooled versions

TECHNICAL DATA

SPECIFICATIONS
Max power S1/S6	kW	12/24
Nominal power	rpm	12000
Max rotational speed	rpm	24000
Max torque S1/S6	Nm	10.9/11.6
Current S1/S6	A	23/27
Voltage	V	380
Type of electrospindle	Synchronous 4 Poles
Weight	kg	23

EQUIPMENT
Tool taper	HSK 63F
Type of tool changer	Automatic
Bearings	Ceramic: grease lubrication life
Cooling	Electrofan
Sensors	S1 (Tool grip) S2 (Collet Open) S3 (Spindle rotation)
Release cylinder	Pneumatic double action
Other specifications	Taper blow
	Pressurised labyrinth

OPTIONAL
ISO30 Tool Taper
Long nose
C Axis
Air Tool
Bearings Temperature Monitoring Sensor
Vibration Sensor
Compressed Air Cooling
Speed Monitoring Sensor
Sensor S5
CC Circular Connection
Plug & Play PP Connection
